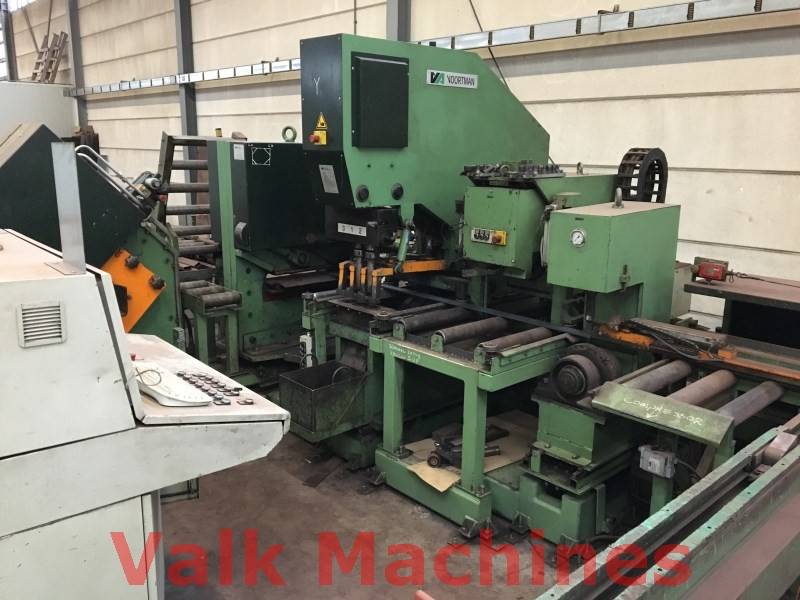

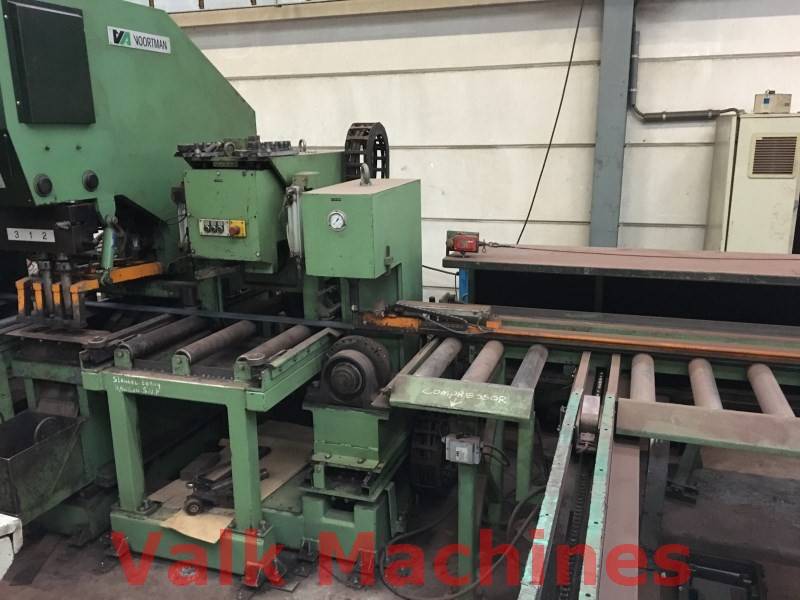

Punching & Shearingline Voortman V550
Punching & Shearingsystem Voortman
| Capacities | |
| Flatsteel | |
| - length: | 6.200 mm |
| - width: | 50 - 500 mm |
| - thickness: | 5 - 25 mm |
| Anglesteel | |
| - length: | 12.200 mm |
| - width / height: | 50x50 - 150x150 mm |
| - thickness (max): | 15 mm |

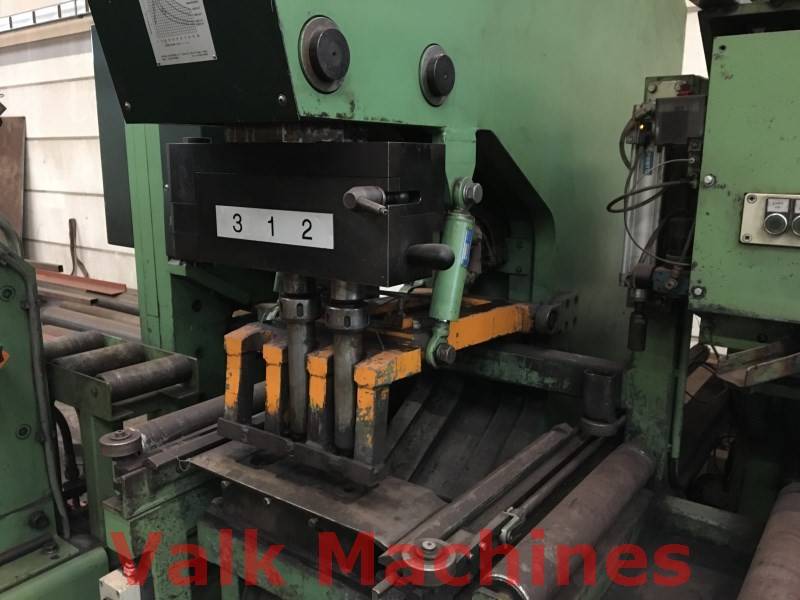

| Punchingunit | Voortman VP 1000 |
| Punchingpower: | 100 Ton |
| Punchingcapacity: | Ø 30 in 26 mm |
| No. of punches: | 3 pieces |

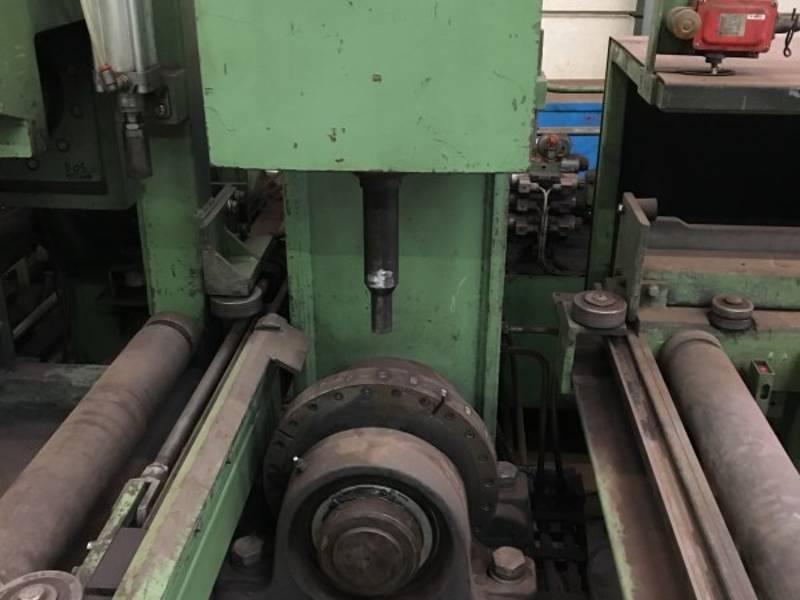

| Horizontal Punchingunit | |
| Punchingpower: | 40 Ton |
| Punchingcapacity: | Ø 21 in 15 mm |

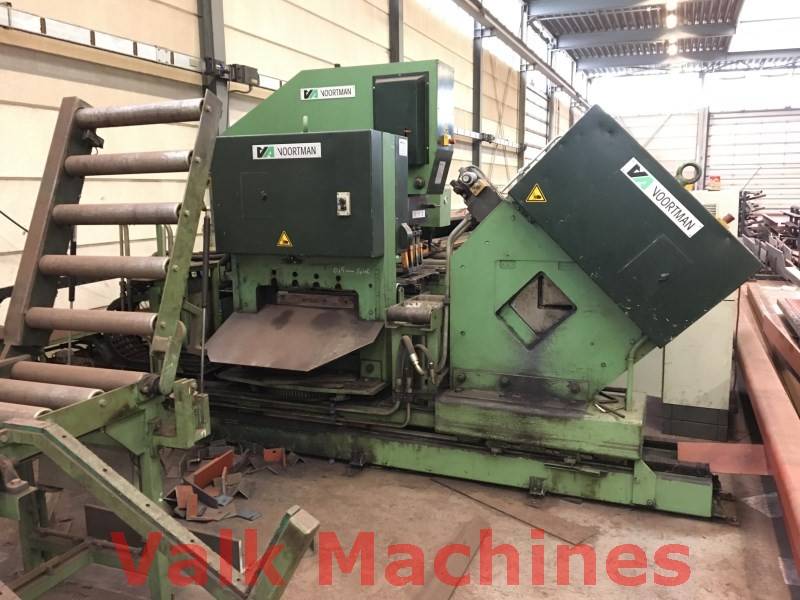

| Flatsteel shear | Voortman VPS 1800 |
| Cuttingpower: | 180 Ton |
| Cuttingcapacity: | 500 x 22 mm |
| (Length x Thickness) | |
| Adjustable angle: | +/- 45º |
| Anglesteel shear | Voortman VHS 1800 |
| Cuttingpower: | 180 Ton |
| Cuttingcapacity: | 150 x 150 x 15 mm |
| (Length x Width x Thickness) | |
| Numberingunit | |
| No. of disks: | 1 |
| Characters: | 12 |

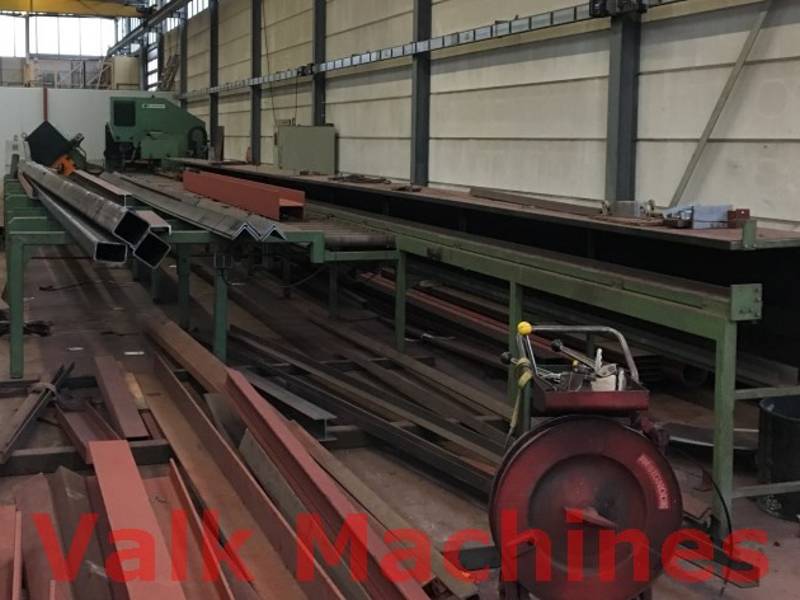

| Infeed roller conveyor | |
| Length: | 12.200 mm |
| Feeder: | With materialclamp |

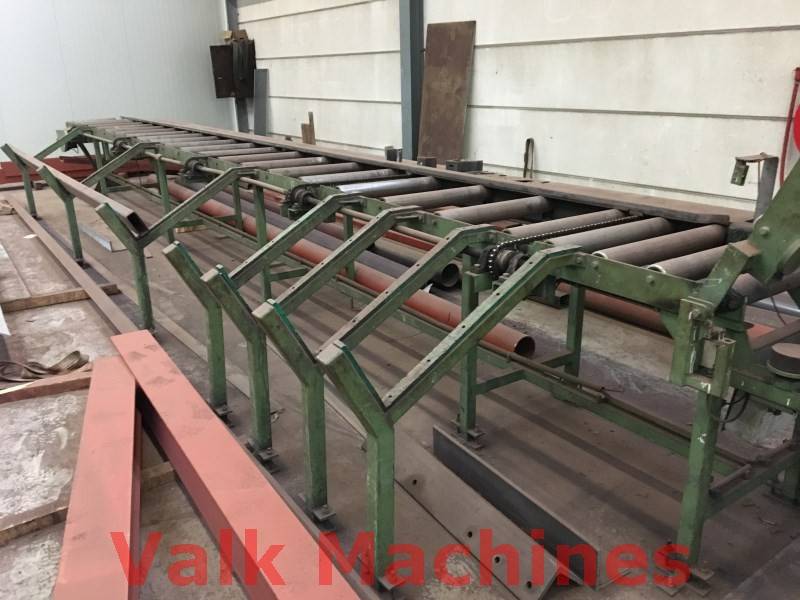

| Outfeed roller conveyor | |
| Length: | 11.000 mm |
Punching & Shearingline Voortman V550
