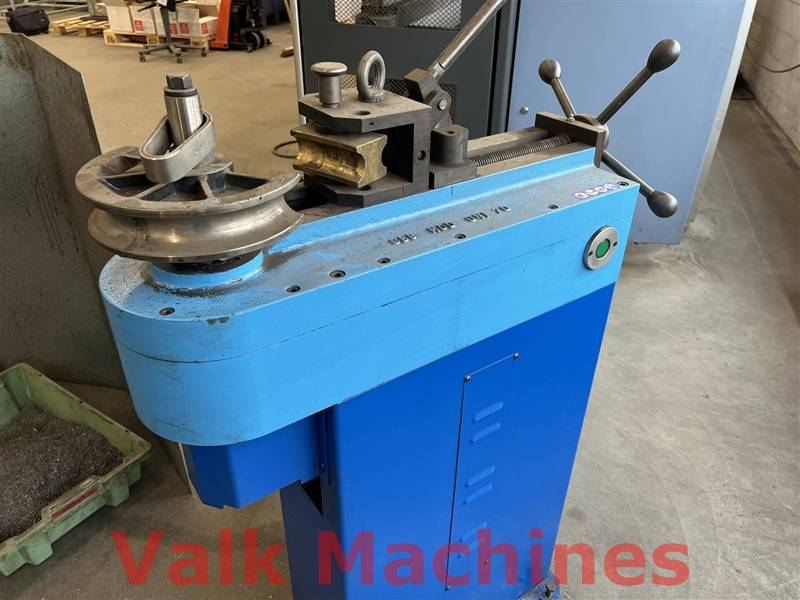

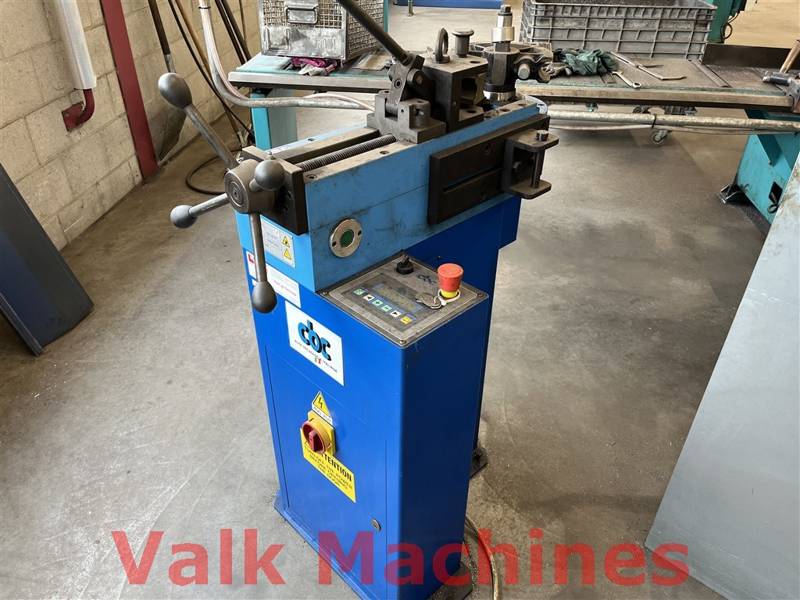

Pipebendingmachine CBC Ø60 MM
TECHNICAL SPECIFICATIONS
| Bendingcapacity: | Copper pipes: Ø60 x 4 mm Steel pipes (Fe) buis: Ø60 x 4 mm Aluminium pipes: Ø60 x 8 mm Stainless steel pipes: Ø60 x 3 mm Hydraulic pipes: Ø60 x 4 mm Gaspipes: 2" |
| Bendingradius min/max: | 3-4D |
| Bendingangle: | 0 - 180° |

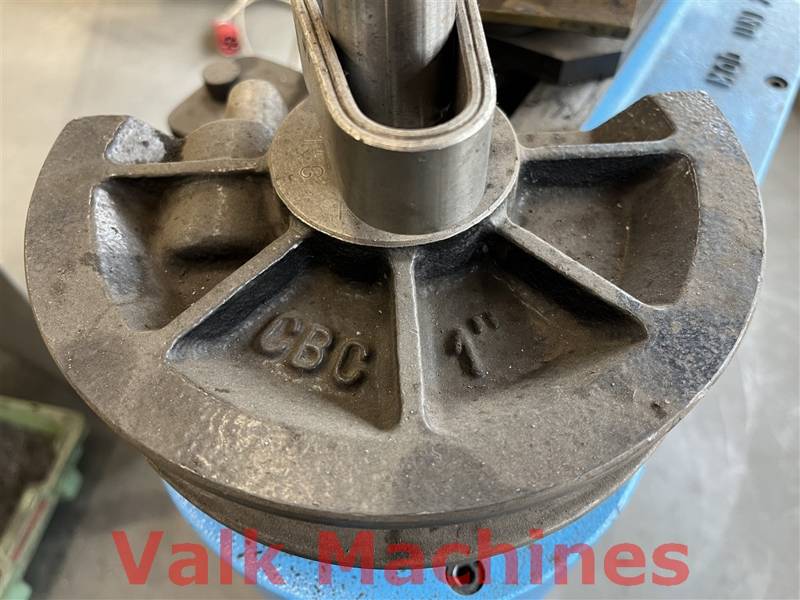

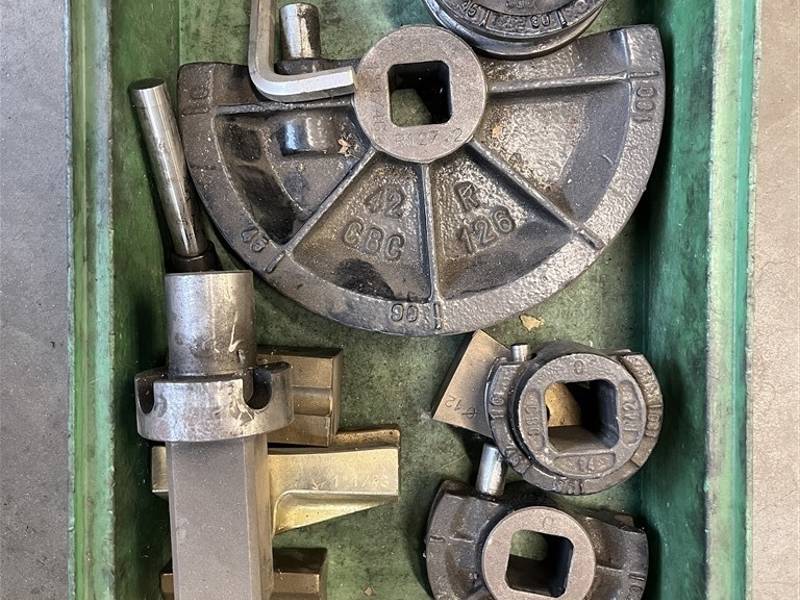

| Including bendingforms: | - Ø14 mm - Ø18 mm - Ø20 mm - Ø42 mm - Ø1" |

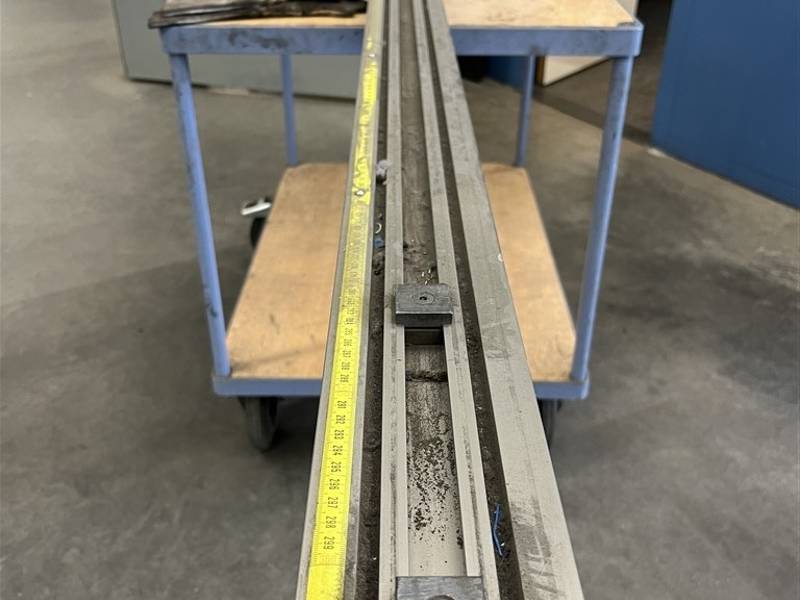

| Feastured with:: | - Mandrel unit with Length 3000mm - 2-hand controlled - Automatic return at stroke end - User manuals |
| Country of origin: | Italy |
| Motor power: | 1,5 KW |
| Machine LxWxH: | 810 x 515 x 1100 mm |
| Machine weight: | 210 kg |
Pipebendingmachine CBC Ø60 MM
